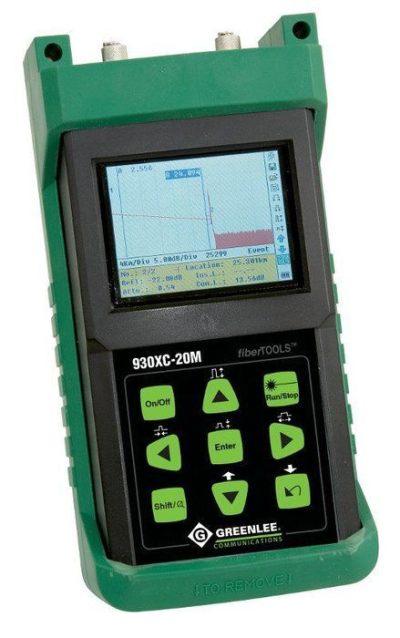

GREENLEE 930XC-20C: 1310/1550nm OTDR OPTICAL TIME-DOMAIN REFLECTOMETER

Download

       00961 1 894 243

Description

Overview

The 930XC OTDR is an easy to use, full-featured handheld test instrument that is capable of measuring the length to a fault or the length of singlemode and multimode fiber optic cables. The 930XC also measures the reflectance and insertion loss of reflective and non-reflective events. The easy to learn user interface shortens the learning curve so that even inexperienced technicians can measure, qualify, and troubleshoot today’s and tomorrow’s high bandwidth fiber networks. Professional test reports are easily generated using industry standard SOR files that can be saved as a PDF for full documentation.

Applications

  • Validate installed fiber networks for compliance to design requirements
  • Monitor and troubleshoot faults in fiber links



Benefits

  • Short learning curve allows the technician to be productive quickly
  • Locate faults quickly so that fiber installations can restored with low down time

Features

  • High dynamic range to shoot through high loss components
  • Easy to use “single button” interface with “Auto Test” mode
  • Bellcore GR196 compliant
  • Optical power meter, stabilized laser source, and visual fault locator included standard with all models
  • Free Trace Viewer documentation program is included with all kits

Dual Wavelength Single Mode OTDR
930XC-20C-UPC-FC
930XC-20C-UPC-SC
930XC-20C-UPC-ST
930XC-20C-APC-FC
930XC-20C-APC-SC
Triple Wavelength PON OTDR
930XC-30P-UPC-FC
930XC-30P-UPC-SC
930XC-30P-UPC-ST
930XC-30P-APC-FC
930XC-30P-APC-SC
Triple Wavelength 1625nm Filtered OTDR
930XC-30F-UPC-FC
930XC-30F-UPC-SC
930XC-30F-UPC-ST
930XC-30F-APC-FC
930XC-30F-APC-SC
Multi -Mode OTDR
930XC-20M-UPC-FC
930XC-20M-UPC-SC
930XC-20M-UPC-ST

Model DESCRIPTION
930XC-20C-UPC-FC OTDR, SM DUAL WAVE, 85/13, OPM, SLS, UPC FC
930XC-20C-UPC-ST OTDR, SM DUAL WAVE, 85/13, OPM, SLS, UPC ST
