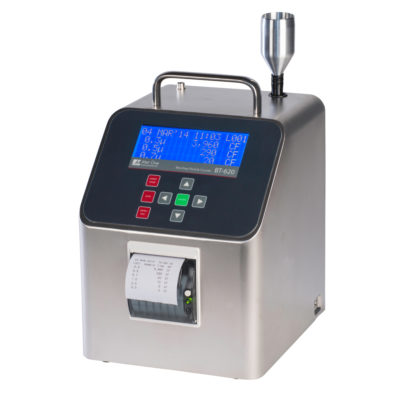

Our BT-620 Bench-Top Particle Counter provides a full feature set in a lightweight convenient size. This Counter monitors 6 particle sizes, includes a built-in printer, is battery or AC operated in a stainless-steel case. The 620 flow rate is 1.0 cfm (28.3 lpm) and is maintained with volumetric flow control for improved accuracy. Like the 610, the 620 data is easily viewed on its display from distances exceeding 3 meters.
Operations / Interface
Our BT-620 Bench-Top Particle Counter provides a full feature set in a lightweight convenient size: 6 particle sizes, built-in printer, battery operation and a stainless-steel case. The built-in battery provides over 8 hours of typical (intermittent) operation or 4 hours continuous operation. Connect the AC adapter/charger for longer operation and battery charging. A temperature / relative humidity plug-and- play sensor option immediately adds ambient temperature and relative humidity information to the displayed and logger data.
The BT-620 has a large, easy to read display, audible alarm and internal printer that work together to verify particulate levels. If the particle count exceeds the user’s re-set limit, an audible alarm will sound. The screen display, sample history and printout will indicate the alarm event. Two programmable count alarm limits may be set. The user can select the particle sizes for each of the six channels from 0.3 to 10 microns. Custom calibrations are not required.
This Bench-Top Particle Counter stores over 8,000 sample events. Sample history can be viewed, printed or downloaded to a computer using Particle View software or simple ASCII terminal commands. Connectivity is built-in for both digital (Ethernet, USB, RS-232, RS-485) and analog (0-5 VDC). The BT-620 also includes a Memory Stick port. The built-in printer has two modes of operation. Print Sample: prints the sampled data at the end of each sample including alarm, date, time and location. Recall Data: prints all sampled data from the first selected date and time to the second selected date and time.
- Compact / Portable w/ built-in printer
- Volumetric Flow Control – improved accuracy
- Large Display – easily viewed from across room
- Improved Software
- 2-year Warranty
Particle View Software
Iso-kinetic Sample Probe
Zero Particulate Filter
Printer Paper – 2 Rolls
NIST Certificate of Calibration
RH & Temperature Probe (P/N G3120)
Flow Meter (P/N 81755)
Serial Cable (P/N 550065)
ISO 21501-4 Calibration (P/N 80849)
Particle View RT Software (P/N Particle View)
Printer Paper (P/N 750514)
