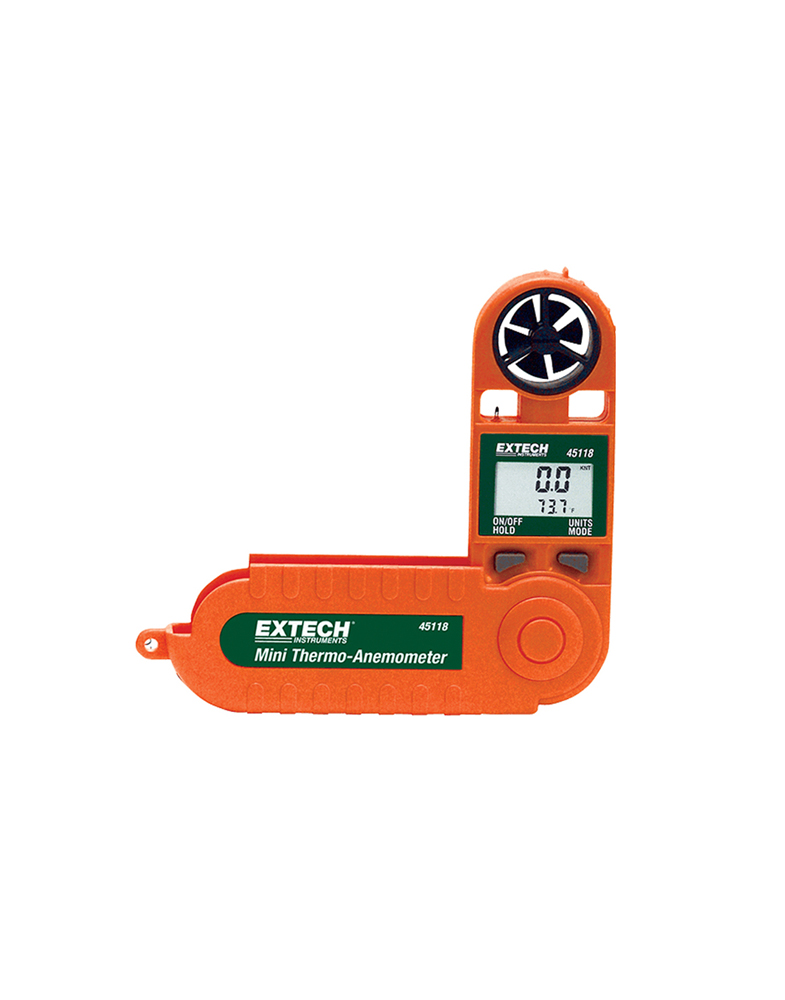

Extech 45118: Mini Thermo-Anemometer

Download Datasheet

             00961 1 894 243

$207.00

Description

Pocket Air Velocity meters
With displays of Temperature, Relative Humidity and Dew Point

Features:
• Fold up protective housing extends to 9″ for better reach
• Large dual display of air velocity and temperature
• Data Hold to freeze most recent display
• Auto shutoff 15 minutes after last key is pressed
• Water resistant housing floats and Drop tested to 6 feet
• Complete with CR2032 lithium battery and lanyard
Windspeed:
• Measures ft/min, MPH, m/s, km/h, Knots and Beaufort Force
• Selectable averaging function of 5, 10, or 13 second intervals
• Replaceable non-corrosive plastic wind vane (impeller)
Temperature and Windchill:
• Measures from 0 to 122°F (-18 to 50°C)
Model 45158 Additional Features:
Relative Humidity and Dew Point:
• Dual display of air velocity and relative humidity
• Measures RH from 10% to 95%
• Measure Dew Point from 32˚F to 122˚F

Measurements Range Resolution Basic Accuracy
ft/min (feet per minute) 100 to 5500 ft/min 20ft/min ± (3%rdg + 40ft/min)
ft/min (feet per minute) 0.5 to 28m/s 0.1m/s ± (3%rdg + 0.2m/s)
km/h (kilometers per hour 1.8 to 100.6 km/h 0.7km/h ± (3%rdg + 1.4km/h)
MPH (Miles per hour) 1.1 to 62.5 MPH 0.1MPH ± (3%rdg + 0.4MPH)
knots (nautical miles per hour) 1.0 to 54.3 knots 0.3knots ± (3%rdg + 0.6knots)
Beaufort Force 1 to 17 BF 1 BF ± 1
Temperature 0 to 122°F (-18 to 50°C) 0.1°F/°C ±1.8°F/±1°C
Relative Humidity (Model 45158) 10% to 95% 1% ± 4%
Dew Point (Model 45158) 32°F to 122°F ± 2%
Power CR2032 Lithium battery
Dimensions 5.25 x 2.75 x 0.75″ (133 x 70 x 19mm)
Vane 1″(24mm) diameter
Weight 3oz (95g)
