Description
Quickly checks for correct wiring of AC outlet load handling capabilities plus Outlet Tester functions

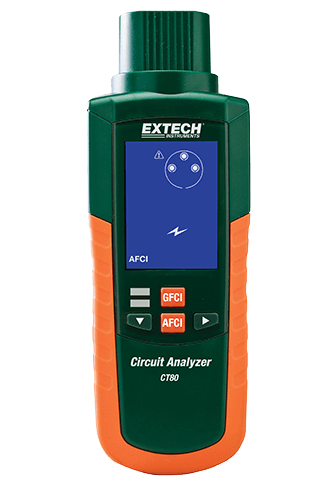

Circuit and wiring issues can introduce shock hazards (from grounding issues) and can compromise performance of machinery and equipment (from poor ground impedance, lack of sufficient voltage under load and/or high ground-to-neutral voltage). The CT80 is a GFCI and AC Circuit Analyzer which covers outlet load handling and outlet tester functions. Complete with AC test cord (standard North American 3-prong plug).
- Outlet Tester functions:
- AFCI
- GFCI Trip Current
- GFCI Trip Time
- EPD Trip Current
- Neutral to Ground Voltage
- Hot, Neutral and Ground Impedance
- Open or Reversed wiring
- AC Load Tester:
- Selectable loads of 12, 15 and 20 Amps
- Measures loaded and unloaded AC Line Voltage
- Calculates and displays % Voltage Drop and Line Impedance
- Displays Peak Line Voltage and Frequency
- Over-Temperature protection
- Complete with AC test cord (standard North American 3-prong plug)
