Description

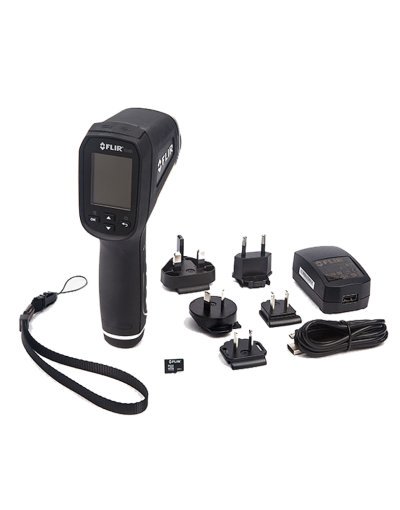

FLIR TG167 ™
Spot Thermal Camera
The FLIR TG167 Spot Thermal Cameras bridge the gap between single spot infrared thermometers and FLIR’s legendary thermal cameras. Equipped with FLIR’s exclusive Lepton® micro thermal sensor, these cameras let you see the heat so you know exactly where to target the measurement spot. Easily find unseen hot and cold spots for instant troubleshooting, and store images and data to show customers and include in reports.
IT’S ALL IN THE DETAILS
The 25-degree field of view gives you image clarity on small details from a farther distance, including small connectors and wires.
GRAB AND GO SIMPLICITY
The TG167 is Intuitive to operate – no special training required. Easily save images and data for documentation, and download your images fast over USB or via removable micro SD.
RUGGED AND RELIABLE
Designed for the harshest environments, the TG167 is durable enough to withstand a 2- meter drop for your toughest jobs.
FLIR TG167 SPECIFICATIONS
| Model | TG167 |
|---|---|
| Imaging and optical data | |
| Field of view (FOV) | 25º x 19.6º |
| IR resolution | 80 × 60 pixels |
| Thermal sensitivity/NETD | < 150 mK |
| Minimum focus distance) | 0.1 m (4 in.) |
| Image frequency | 9Hz |
| Focus | Focus free |
| Detector data | |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Spectral range | 8–14 μm |
