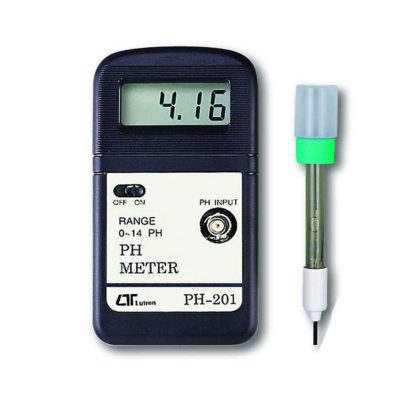

Lutron PH-201: Pocket PH meter

Download

             00961 1 894 243

$140.00

Category:

Description

Specifications:

Features * Economical cost digital PH meter
* General purpose applications.
* Easy operation
* Compact size, light weight.
Display LCD, size : 45 mm x 29 mm.
Measurement pH
Range/Resolution 0 to 14 pH x 0.01 pH
Accuracy ± 0.07 pH ( pH 5 – pH 9 ), ± 0.1 pH ( pH 4 – pH 10 ) ± 0.2 pH ( pH 1 – pH 3.9, pH 10.1 – pH 13 ).

* Main instrument only.

Input Impedance 10^12 ohms.
PH range Temp

Compensation

Not necessary to adjust.
Sampling Time Approx. 0.4 second.
Operating Temperature 0 to 50 ( 32 to 122 )
Operating Humidity Less than 80% RH.
Calibration VR External pH 4 ( slope adj. ) & pH 7 ( Cal. adj. ) calibration adjustment VR
Power Supply 006P DC 9V battery
Power Consumption Approx. 2.0 mA.
Dimension 131 x 70 x 25 mm,(5.3 x 2.4 x 1.3 inch).
Weight 153 g/0.34 LB (including battery).
PH electrode

( Optional )

Any connector PH Electrode with  BNC connector.
Standard

Accessories

Instruction Manual………………………….. 1 PC
Optional

Accessories

pH electrode, pH 4, pH 7 buffer solution, Carrying case, Case holder.

Applications:

  • AQUARIUMS
  • PLATING INDUSTRY
  • LABORATORY
  • BEVERAGE
  • QUALITY CONTROL
  • SCHOOLS & COLLEGES
  • FISH HATCHERIES
  • FOOD PROCESSING
  • SWIMMING POOLS
  • PAPER INDUSTRY
  • PHOTOGRAPHY
  • WATER CONDITIONING

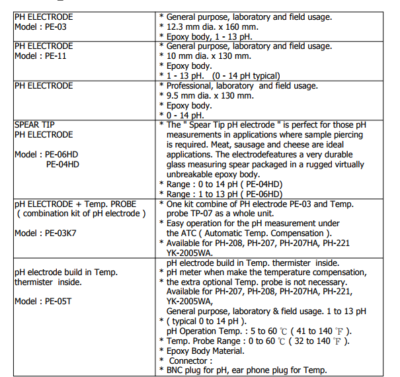

Optional Accessories:

PH ELECTRODE PE-03 General purpose pH electrode with BNC connector.

Range : 1 to 13 pH ( typical 0 to 14 pH ).

Epoxy body, Body size : 12 mm dia. x 160 mm. Cable length : 1 meter

PH ELECTRODE PE-11 General purpose & high quality pH electrode with BNC connector.

Range : 1 to 13 pH ( typical 0 to 14 pH ).

Epoxy body, Body size : 9.5 mm dia. x 120 mm.Cable length : 1 meter.

PH ELECTRODE PE-01 High quality, Professional, Laboratory & field usage.

Range : 0 to 14 pH.

Epoxy body, Body size : 9.5 mm dia. x 120 mm.Cable length : 0.75 meter.

SPEAR TIP PH ELECTRODE PE-04HD Ideal for penetration pH measurements into meats, cheese, soil  and other types of measurements requiring sample penetration. Range : 0 to 14 pH.
SPEAR TIP PH ELECTRODE PE-06HD Ideal for penetration pH measurements into meats, cheese, soil and other types of measurements requiring sample penetration. Range : 1 to 13 pH
BUFFER SOLUTION, PH-07 pH 7.00 standard buffer solution
BUFFER SOLUTION, PH-04 pH 4.00 standard buffer solution
CARRYING CASE, CA-52A Vinyl soft case for PH-201.
CARRYING CASE, CA-06 Hard carrying case for PH-201.
