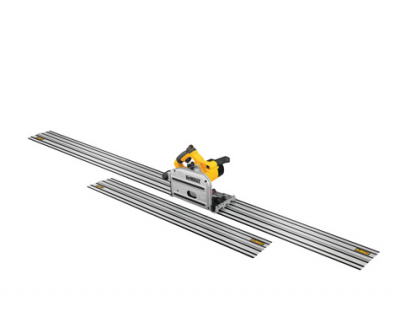

Dewalt DWS520CK: 6-1/2″ (165mm) TrackSaw Kit with 59″ & 102″ Track

Download

       00961 1 894 243

Category:

Description

The DWS520CK 6-1/2″ TrackSaw Kit with 59″ and 102″ Track has a 12 Amp motor to easily power through hardwoods up to 2-1/8″ thick. For use with TrackSaw™ cutting system to deliver precise, straight, splinter-free cuts. Includes 59″ and 102″ track.

FEATURES

  • Zero clearance TrackSaw™ cutting system delivers precise, straight, splinter-free cuts
  • For use with TrackSaw™ dual-edged tracks for perfectly straight cuts in both directions
  • On-track cut depth: 2-1/8″ (54mm) @ 90°, 1-5/8″ (41mm) @ 45°; depth scale accurately indicates exact depth of cut accounting for track thickness
  • 12A, 1300W motor effortlessly powers through hard woods up to 2-1/8″ thick
  • Continuous anti-kickback mechanism and riving knife prevent kickback when engaged
  • Low-profile blade guard allows saw to be used in confined spaces
  • Straight Plunge Mechanism for optimal ergonomics
  • Universal 1-1/4″ dust port for 90% efficient dust collection with vacuum

Specifications

  • Amps 12 Amps
  • Bevel Capacity 47 Degrees °
  • Blade Diameter 6-1/2″
  • Max Cut at 45° 1-5/8 in
  • Max Cut at 90° 2-1/8 in
  • No Load Speed 1,750 – 4,000 rpm
  • Power Tool Type Corded

THIS KIT INCLUDES

Includes

  • DWS520 Heavy-Duty TrackSaw™
  • 6-1/2″ (20mm arbor size) 48-Tooth Ultra Fine finishing Blade
  • Blade Wrench
  • 59″ Track
  • 102″ Track
  • Kit Box
