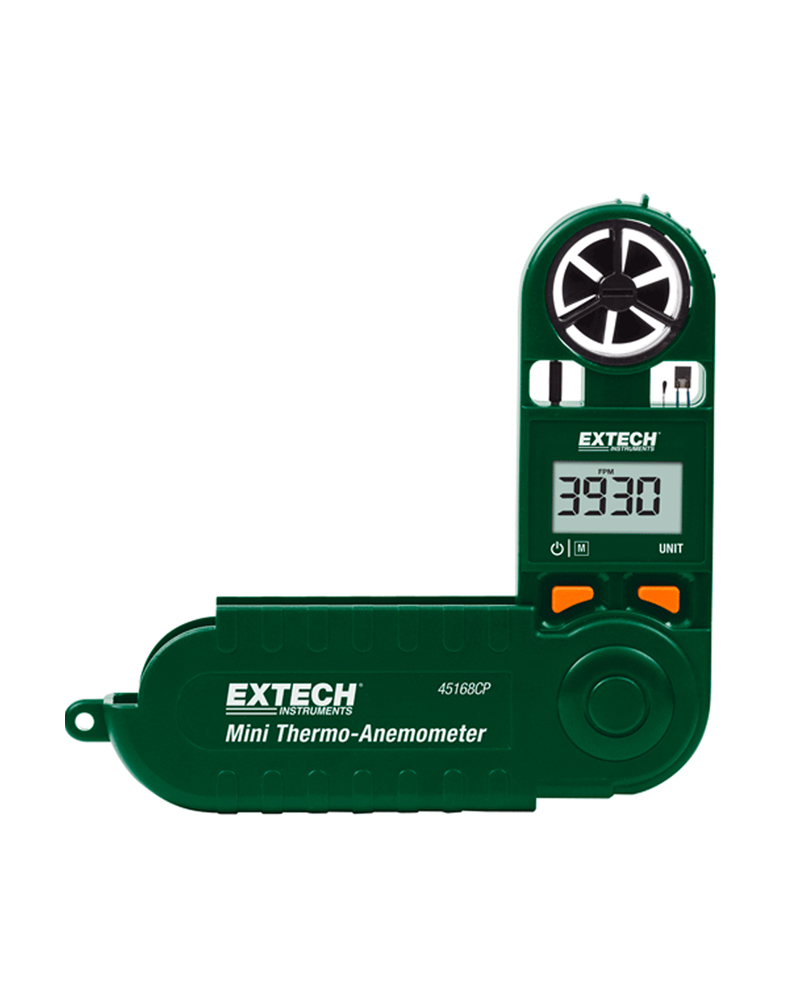

Extech 45168CP: Mini Thermo-Anemometer with Built-in Compass

Download Datasheet

             00961 1 894 243

$306.00

Description

Foldable, Pocket Size with Windspeed, Temperature, Relative Humidity, Dew Point, Wet Bulb and Windchill

Pocket Thermo-Anemometer measures Windspeed in ft/min, MPH, m/s, km/h, Knots and Beaufort
Force with 10 second averaging function. Additional measurements include: Temperature, Relative
Humidity, Dew Point, Wet Bulb, and Windchill. The built-in compass provides wind direction/360° readings and has an easy-to-use calibration procedure for improved accuracy

Features:
• Pocket sized meter folds up for storage and extends up to 9″ when taking measurements
• Built-in Compass provides wind direction (Head/Cross/ Tail Wind calculation) and 360° readings
• Delta T displays Air Temperature minus Dew Point
• Max function recalls highest windspeed reading over time
• Auto Power Off 5 minutes after last key is pressed with disable feature
• Water resistant housing floats and drop-tested to 6 feet
• Replaceable non-corrosive plastic wind vane (impeller)
• Tripod mount for hands-free applications
• Complete with CR2032 lithium battery and lanyard

Specifications Range Resolution Basic Accuracy
ft/min (feet per minute) 216 to 3936 ft/min 2 ft/min ±(3%rdg + 40 ft/min)
m/s (meters per second) 1.1 to 20 m/s 0.1 m/s ±(3%rdg + 0.2 m/s)
km/h (kilometers per hour 4.0 to 72.0 km/h 0.1 km/h ±(3%rdg + 1.4 km/h)
MPH (Miles per hour) 2.5 to 44.7 MPH 0.1 MPH ±(3%rdg + 0.4 MPH)
knots (nautical miles per hour) 2.1 to 38.8 knots 0.1 knots ±(3%rdg + 0.6 knots)
Beaufort Force 1 to 8 BF 1 BF ±1
Temperature 5 to 122°F (-15 to 50°C) 0.1° ±1.8°F/1°C
Relative Humidity 0.1% to 99.9% 0.1% ±3%
Dew Point -4°F to 122°F (-20 to 50°C) 0.1°
Wet Bulb 23°F to 122°F (-5 to 50°C) 0.1°
Compass 0 to 360° ±2°
Dimensions Meter: 5.51 x 1.77 x 0.98″ (140 x 45 x 25mm); Vane: 1″ (24mm) diameter
Weight 3oz (95g)
